Holman Wilfley are a globally recognised suppler of high quality shaking tables that are precision made to produce the best gravity separation.
Our team of highly experienced engineers manufacture and assemble our tables on our factory site in the United Kingdom where the machines are built to sub millimetre accuracy and vigorously tested before being shipped to our customers worldwide.

The tables are constructed of the best materials on the market and have been tried and tested in the field over many decades.

Holman Wilfley are constantly improving the design by researching new materials and working practices that improve durability and performance.

shaking-table-installation

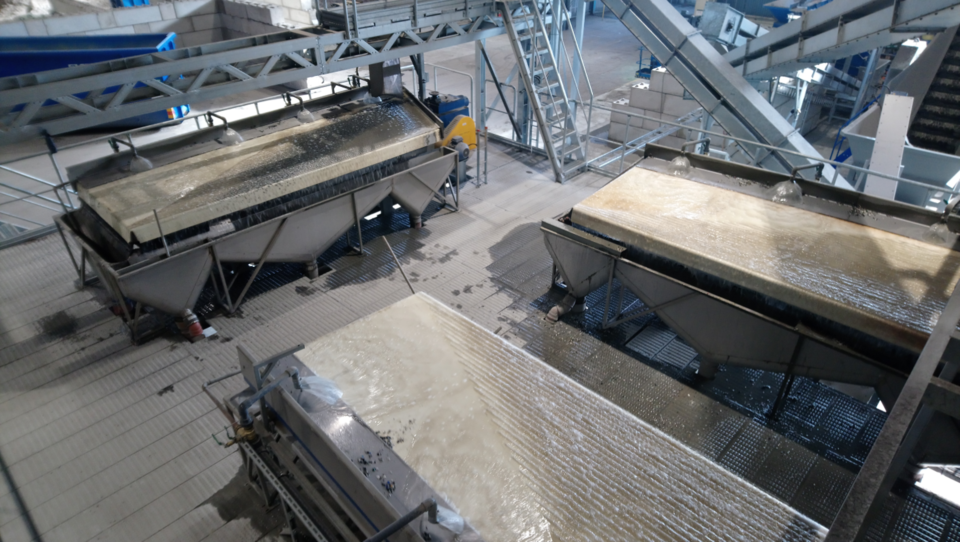

Holman 8000 Shaking Table Installation
products-copper-separation2
Copper Recovery on a Wilfley 7000 Water Table
Machine Specifications:
Holman Unit
  • Unit is driven by a Holman head motion with a stroke adjustment of between 8mm and 16mm (nominal).Head motion is self- lubricating.
  • Simple, robust design requiring minimal maintenance.
  • Deck is supported on 42 carriers and is vibrated diagonally along the entire length.
  • Decks are made from good quality timber with standard 5mm rubber covers for maximum durability (White/Black Option).
  • Different riffle patterns can be supplied to maximise metallurgical performance.
  • Table tilt can be easily adjusted using a hand wheel, even while the machine is in operation.
  • Choice of concrete plinth or steel base mountings.
  • All feed/product launders polyurethane lined.
  • All Steels Galvanised (BS EN1461).
  • Fitted 1,5kW IP56 motor.

Wilfley Unit
  • Unit is driven by robust Wilfley head motion with stroke adjustment options of : 8mm - 18mm or 18mm - 36mm.
  • Head motion is self- lubricating. Simple, robust design requiring minimal maintenance.
  • Deck is supported on 2x flexing spring packs and is vibrated longitudinally along the entire length.
  • Decks are made from good quality timber with standard 5mm rubber covers for maximum durability (White/Black Option).
  • A range of riffle patterns available to suit the application metallurgical performance.
  • Table tilt can be easily adjusted using a hand wheel, even while the machine is in operation.
  • Choice of concrete plinth or steel base mountings.
  • All feed/product launders polyurethane lined.
  • All Steels Galvanised (BS EN1461).
  • Fitted 2.2kW IP56 motor.

Wilfley Laboratory Unit
  • Self Lubricating head motion.
  • TWO gel coat, decks (fine and coarse sample processing).
  • Water manifold with spray gun, feed dilution, and wash water controls fitted.
  • Stroke, tilt and end slope easily adjusted, while machine is operating.
  • Stroke frequency by inverter (customer power Feed direct connection to inverter, with options of 110V, 230V single phase).
  • All framework is brushed stainless steel.
  • Adjustable feet for levelling base frame.
  • Machine is portable to location for testing (ie. No Permanent bolting down required).
  • Fitted 0.367kW motor.
800Lab01
Screenshot 2020-07-28 at 09.13.53
